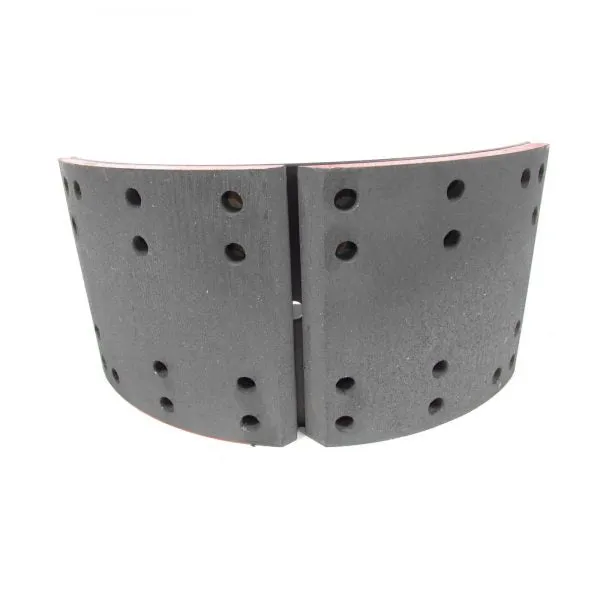

Brake Shoe Kit ~ 4707 / Q Plus ~ 16.5 in x 7.00 in. | Haldex 4707Q / HV884707QG | FleetRun FR-BRKE290

Brake Shoe Kit ~ 4707 / Q Plus ~ 16.5 in x 7.00 in. | Haldex 4707Q / HV884707QG | FleetRun FR-BRKE290

  • DefaultTitle

$ 0.00

$ 75.42

Please select combo product attributes
The combo subtotal is $,SAVE$
Unavailable

Product Details

Part Number

  • FleetRun: FR-BRKE290

Cross Reference Part Number

  • Haldex: 4707Q / HV884707QG / TDA XSMG14707QP / TDA XSMA3124707QP / TDA XSMA2124707QP / TDA XSEG4707QP / TDA XSEG24707QP / TDA XK2124707QP / ABP MK4707Q 23PREM / ABP MK4707Q 23ECON / TDAXKW3124707QP / TDAXK3124707QPR / TDAXK23014707QP / TDAXK2124707QP / TDAKSMA3124707QP / RC BKE4707QRSD23 / RC BKE4707QHV23 / RC BKE4707QHV20 / RK4707QSTD23M / RK4707QLH23M / XSMG2L4707QPRRMAN / RK4707QSTD20M / RK4707QPR23M / RK4707QPR20M / KT4707QBA232R / KT4707QBA230 / NB225KIT-4707Q / KT4707QBA202R / TDA XKEG4707QP / NSNB2004707QK1T / TDA XK3124707QPMB / TDA XK20014707QPMB / K4707QRSD20 / K4707QLH23 / BW KT4707QBA200 / 8235-XK3124707QP / GD4707QG / HV884707QG / RXHV884707QG / RXGD4707QG
  • Bendix: HV884707QG / BNK4707QBA201 / NRK4707QPPR23 / NRK4707QPR23 / NK4707QPR23 / RK4707QLH23 / KT4707QBA230 / KT4707QBA230
  • Meritor: XK3124707QP/ PKSMA312 4707QP / A19-3222D2006
  • Automann: 148.4707Q.23 / 144.470780.23122
  • TRP: RS4707QPR23M / NK4707QPR23M / RK4707QLH23 / RK4707QSTD23 / RK4707QSTD23M
  • Freightliner / Alliance: TDA XK2124707QPMB / TDA XK20014707QP / TDA KEG4707QP
  • Paccar: NRK4707QPPR23 / NRK4707QPR23 / KT4707QBA230 / RRK4707QSTD23
  • International / Navistar: GD4707QG / HV884707QG / BXKT4707QBA230 / ZZGD4707QG
  • Mack: 8235-XKEG24707QP / 8235-XKMG2L4707QP / 8235-XKW3124707QP
  • TruckPro LLC: EXKT4707QBA230
  • RoadChoice: BKE4707QHD23
  • Great Dane Trailers: HLDHV884707QG

Specifications

  • NO CORE NEEDED
  • 4707 Style
  • Fits: Meritor Q Plus Brake Systems
  • These are NEW BRAKE SHOES / NOT REMANUFACTURED
  • NS301 LINING – COMPARABLE TO 23K & 312 LINING
  • Length / Brake Drum Diameter: 16.50 in. / 41.90 cm
  • Width: 7.00 in. / 17.80 cm
  • Axle Weight Rating: 23,000 lbs.

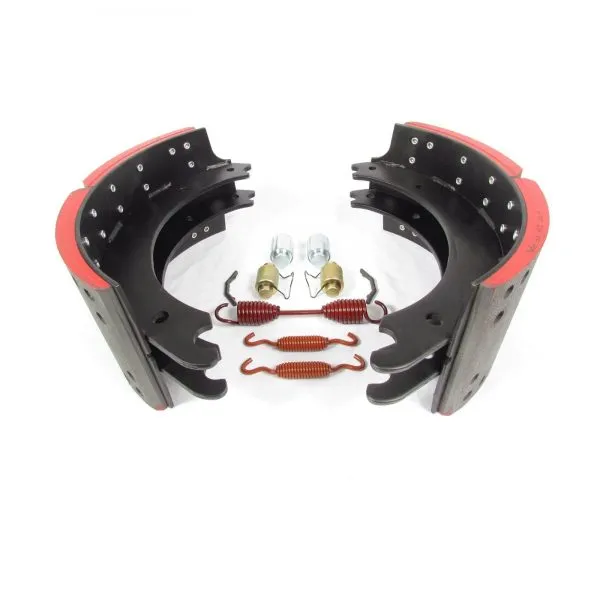

What's Included
  • 2 ~ Shoes With Lining
  • 1 ~ Hardware Kit: 1 Main Spring, 2 Side Springs, 2 Side Spring Pins, 2 S-Cam / Brake Camshaft Rollers, 2 S-Cam / Brake Camshaft Roller Springs, 2 Shoe Mount Bushings, 2 Shoe Mount Rollers
Not What Your Looking For? Check Out These Brake Shoe Kits
Overview

Brake Shoe Kits are crucial to the drum / shoe style brake system and are universal across all applications and are used in various brake systems on tractors / trucks, trailers and dollies. Our brake shoe kits are made with quality in mind, meeting or exceeding OEM standards.

The thickness of the brake lining and pads of steering axle brake shoes on a truck, truck-tractor or bus “shall not be less than 0.1875 in. or 4.8 mm at the shoe center for a shoe with a continuous strip of lining. The thickness of the brake lining and pads of non-steering axle brake shoes on an air-braked commercial motor vehicle should not be thinner than 0.25 in. or 6.4 mm (this measurement is taken at the center of the brake shoe). If disc brakes are used, the minimum thickness is 0.125 in. or 3.2 mm.

VMRS Code
  • 013-017-007
Replacement & Troubleshooting
  • For other information such as tips and tricks or troubleshooting from technicians and shops visit our Shop Talk page from our menu
